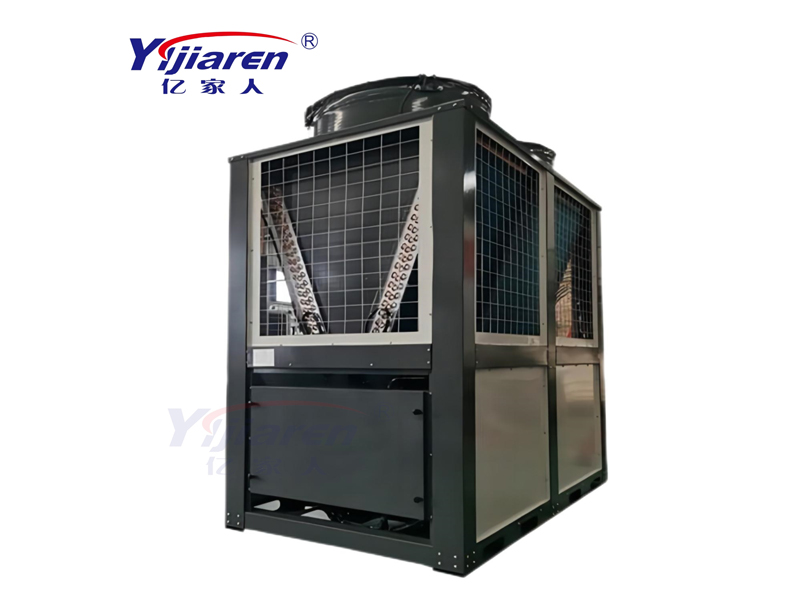

Commercial Heat Pump

Description:1. Using an intelligent water routing control system, the cooling temperature is 7-12 degrees, reaching 60 degrees 2. Make the condensation temperature meet the physical requirements of heat transfer working fluid compression condensation 3. Lower the system high pressure to make the compressor operate at low load, extending the life of the compressor 4. The incoming water directly uses tap water pressure. The circulating water pump is started only when insulation operation is required, reducing the power consumption of the water pump 5. Produce hot water around 60 degrees to achieve miniaturization of the water tank, 6. When the temperature of the water tank drops, the unit automatically enters the cycle heating, always ensuring that the water in the tank is hot.

Hotline:+8613815020506

Feedback

Details

Gallery

Product Description

Model		YJR-C-05HP	YJR-C-07HP	YJR-C- 10HP-A	YJR-C- 10HP-B	YJR-C- 12HP-A	YJR-C-12HP-B	YJR-C-15HP-B	YJR-C-20HP	YJR-C-25HP	YJR-C-30HP
Model		YJR-C-05HP	YJR-C-07HP	YJR-C- 10HP-A	YJR-C- 10HP-B	YJR-C- 12HP-A	YJR-C-12HP-B	YJR-C-15HP-B	YJR-C-20HP	YJR-C-25HP	YJR-C-30HP
Heating Capacity	kw	22	26	36	40	42	48	60	80	95	116
Circulating Water Volume	m³/h	3.77	4.46	6.2	6.86	7.3	8.23	10.32	13.71	16.34	19.95
Water Production	L/h	472	558	773	856	902	1030	1289	1715	2042	2494
Power	/	3N/380V~50Hz
Rated Power	kw	4.58	5.42	9.12	8.85	10.55	10.65	13.64	18.2	21.6	27.6
COP		4.8	4.8	3.94	4.52	3.98	4.51	4.39	4.4	4.39	4.21
Rated Current	A	7.6	8.9	15.1	14.5	16.8	17.2	25.7	31.6	37.5	43.6
Max Power	kw	5.84	7.13	11.5	11.5	14.2	14.2	19.7	24.2	28.8	36.8
Max Current	A	9.3	12.5	18.9	18.9	24.8	24.8	33.5	39.8	46.7	54.5
Water Side Pressure Loss	kPa	50	50	65	65	65	65	65	75	75	75
Water Side Pressure Loss	kPa	50	50	65	65	65	65	65	75	75	75
Compressor	/	Famous Brand High Efficiency Compressor
Compressor Quantity	pc	1	1	2	2	2	2	2	4	4	4
Water Side Heat Exchanger	/	High efficiency tank heat exchanger
Water Side Heat Exchanger	/	High efficiency tank heat exchanger
Water temperature setting	ºC	55ºC (40~60ºC adjustable)
Applicable ambient temperature	ºC	-10~43ºC
External Dimensions	mm	8509001100		14109001100	9859651960	14109001100	9859651960		19609651960
Net Weight	kg	140	180	320	350	340	380	480	750	830	950
Noise	dB(A)	58	58	60	60	60	60	562	65	65	68

About Refrigerants

Background: Global Warming Potential (GWP) and Ozone Depletion Potential (ODP) are important indicators for evaluating the environmental friendliness of refrigerants. Choosing refrigerants with low GWP and zero ODP can help reduce adverse impacts on the atmospheric layer.

Yijiaren can use refrigerants R410A, R290, R32, and R134A, each with different refrigeration capabilities and efficiencies. We can select the appropriate refrigerant according to specific refrigeration needs.

Advantages

1. Using an intelligent water routing control system, the cooling temperature is 7-12 degrees, reaching 60 degrees

2. Make the condensation temperature meet the physical requirements of heat transfer working fluid compression condensation

3. Lower the system high pressure to make the compressor operate at low load, extending the life of the compressor

4. The incoming water directly uses tap water pressure. The circulating water pump is started only when insulation operation is required, reducing the power consumption of the water pump

5. Produce hot water around 60 degrees to achieve miniaturization of the water tank,

6. When the temperature of the water tank drops, the unit automatically enters the cycle heating, always ensuring that the water in the tank is hot.

Applicable scope: hotels, hotels, sauna entertainment centers, large clubs, homes, various farms, etc.

Working principle

Product Configuration
1. High Energy Efficiency Heat Pump Low-Temperature Compressor

Using famous brand ZW series scroll compressors, mature and reliable technology, high production level. Yijia air energy water heater's second-generation products are greatly improved in performance, especially in heating capacity and long service life through system optimization design and the application of various parts.

2. Multi-flow Evaporator

Using internally threaded copper casing hydrophilic aluminum foil multi-path evaporator, blue hydrophilic film aluminum foil fins combined with internally threaded copper pipes, the surface has hydrophilicity, using the rapid discharge of condensation water, not easy to frost, defrost thoroughly, In order to ensure the durability of the system, the effective heat exchange area of the evaporator is increased, and the heat exchange is uniform and sufficient to ensure the absorption of heat from the low-level heat source in multiple places.

3. Copper Tube Heat Exchanger

Using WDD intelligent heating technology, coaxial spiral heat exchange copper tube, turbulent heat exchange, avoiding water scale, the whole copper tube inside has no solder joints, the flow channel has no water blind area, while being corrosion resistant, the tube length is extended, and the contact area with refrigerant becomes larger, The heat exchange utilization is increased, the heat exchange effect is sufficient, and it is enough to ensure the improvement of the unit's energy efficiency ratio.

4. Throttling Device

Adopt domestic big brand Sanhua electronic expansion valve and four-way reversing valve, automatic adjustment, to ensure flexible reversing, no air leakage, no jamming, function control system, stable operation, save money and effort, effectively solve the problem of winter unit evaporator frosting, ensure the unit can operate normally even in cold winter.

5. Silent Fan

Using heat exchanger and low-speed high torque new three-dimensional design turbine fan, while improving the efficiency of the heat exchanger, it can automatically adjust the wind speed according to the ambient temperature, run quietly, use large diameter low-speed wind, motor, improve efficiency, reduce frosting, and reduce noise.

6. Intelligent Control System

The use of air source heat pump intelligent controller, control logic reasonable selection of high-quality materials, exhaust protection, overcurrent protection, phase sequence protection, water temperature too high protection, high and low-pressure protection and other multi-faceted protection functions fully intelligent control.

R32/R290/R410A Refrigerant Commercial Dehumidification Swimming Pool Air Source Heat Pump

Previous Engineerings

Mainly used for Hotel/School/Hospital/Staff Domitory/GYM/Salon and other places that require a lot of hot water. If you don't know how to match hot water engineering solutions, please contact our team.

Application

About Us

Jiangsu Obuy New Energy Development Co., Ltd.
- Professional Commercial Heat Pump for Swimming Pool Cooling and Dehumidifying

Jiangsu Obuy New Energy Development Co., Ltd., known by the brand name "Yijiaren," is an environmentally friendly industrialized enterprise specializing in the research, production, and sales of new energy products. Our Professional Commercial Heat Pump for Swimming Pool Cooling and Dehumidifying is one of our flagship products.

Designed to provide efficient and eco-friendly solutions, our heat pump utilizes air source technology to cool and dehumidify swimming pools. With its advanced features and reliable performance, it is the ideal choice for commercial applications.

Key Features:

Energy-efficient: Our heat pump uses air source technology to extract heat from the surrounding air, resulting in significant energy savings.
Environmentally friendly: By utilizing renewable energy sources, our heat pump helps reduce carbon emissions and minimize environmental impact.
Reliable performance: With its robust design and high-quality components, our heat pump delivers consistent and reliable performance, ensuring optimal cooling and dehumidification.
Easy installation: Our heat pump is designed for easy installation, allowing for hassle-free integration into existing swimming pool systems.
Low maintenance: Our heat pump requires minimal maintenance, saving you time and money in the long run.

Whether you own a hotel, fitness club, or any other commercial facility with a swimming pool, our Professional Commercial Heat Pump for Swimming Pool Cooling and Dehumidifying is the perfect solution to maintain a comfortable and enjoyable swimming environment.

Choose Jiangsu Obuy New Energy Development Co., Ltd. for energy-efficient, environmentally friendly, and reliable heat pump solutions. Contact us today to learn more about our products and how they can benefit your business.
