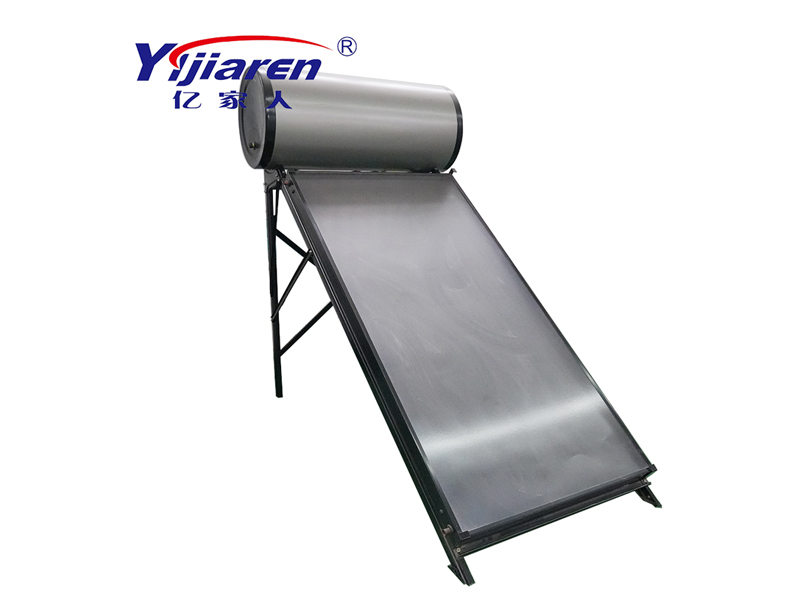

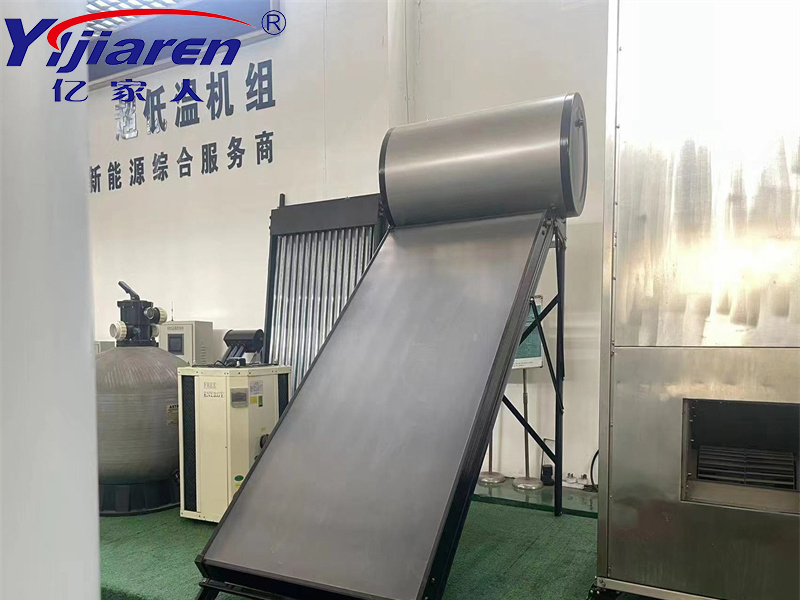

Product Description

Model	YJR-100-PBYT	YJR-150-PBYT	YJR-200-PBYT	YJR-300-PBYT
Capacity of water tank (L)	100	150	200	300
Length of water tank (mm)	1000	1000	2100	2100
Diameter of water tank (mm)	500	540	500	540
Liner length of water tank (mm)	850	1950	850	1950
Liner diameter of water tank (mm)	385	440	385	440
Thickness of insulation layer (mm)	57.5	50	57.5	50
Inner tank thickness and material	1.2mm SUS304-2B/SUS316L stainless steel board
Outer barrel thickness and material	0.4mm pearlescent board or stainless steel board
Bracket thickness and material	1.5mm galvanized steel sheet spraying
Flat-plate solar collector	TP2 copper pipe, aluminum heat-absorbing fins, glass wool composite insulation, 0.6Mpa working pressure
Specifications of flat-plate (mm)	1500*1000*80	2000*1000*80	1500*1000*80	2000*1000*80
Quantity of flat-plate (pcs)	1	1	2	2



The flat-panel solar hot water project enables the system to operate under pressure and can be integrated with heat pumps or boilers, promoting energy conservation and environmental protection. Our company specializes in undertaking hot water projects for hotels, hospitals, factories, schools, nursing homes, and other areas. We offer a range of solar energy products and hot water solutions, including heat pipe collectors, flat plate collectors, and vacuum pipe collectors. We provide a comprehensive set of solar energy products, comprising heat pumps, water tanks, circulating pumps, pipelines, and accessories for complete export. Assembly can be done based on provided drawings, and our company offers remote guidance for installation and debugging services. Under special circumstances, our technical personnel can be sent abroad to provide guidance

 Internal Structure

 Features

1. The use of black chrome or blue titanium coating as the high-efficiency solar absorptive material, along with all-copper heat pipes, ensures rapid heat conduction and a long lifespan.

2. Dual-layer resin collector cover, fully automated laser welding of the entire panel, reduces damage to the absorptive coating and flow tubes, specially designed for insulation in the Northeast region.

3. Superconductive circulating medium with a unique formula, featuring a low boiling point, swift circulation, and normal operation at temperatures as low as minus 30 degrees Celsius, ensuring year-round reliability.

4. The support structure is capable of withstanding up to 300 kilograms, designed to withstand wind forces of up to 11 levels.

5. The product complies with both domestic and international testing standards.

  The System Engineering Advantages of Flat Panel Solar Energy

1. Large heat absorption area, rapid heat absorption,
2. Suitable for water or alternative mediums, adaptable to various regions,
3. Simple, fast, convenient, and aesthetically pleasing installation,
4. Compatible and complementary with other energy sources for energy conservation,

5. Convenient maintenance for safe usage in projects.
