flat-plate solar collector
Description:The flat-panel solar hot water project enables the system to operate under pressure and can be integrated with heat pumps or boilers, promoting energy conservation and environmental protection. Our company specializes in undertaking hot water projects for hotels, hospitals, factories, schools, nursing homes, and other areas. We offer a range of solar energy products and hot water solutions, including heat pipe collectors, flat plate collectors, and vacuum pipe collectors. We provide a comprehensive set of solar energy products, comprising heat pumps, water tanks, circulating pumps, pipelines, and accessories for complete export. Assembly can be done based on the provided drawings, and our company offers remote guidance for installation and debugging services. Under special circumstances, our technical personnel can be sent abroad to provide guidance.
Hotline:+8613815020506
Details
Gallery

Product Description

ModelYJR-100-PBYTYJR-150-PBYTYJR-200-PBYTYJR-300-PBYT
Capacity of water tank (L)100150200300
Length of water tank (mm)1000100021002100
Diameter of water tank (mm)500540500540
Liner length of water tank (mm)85019508501950
Liner diameter of water tank (mm)385440385440
Thickness of insulation layer (mm)57.55057.550
Inner tank thickness and material1.2mm SUS304-2B/SUS316L stainless steel board
Outer barrel thickness and material0.4mm pearlescent board or stainless steel board
Bracket thickness and material1.5mm galvanized steel sheet spraying
Flat-plate solar collectorTP2 copper pipe, aluminum heat-absorbing fins, glass wool composite insulation, 0.6Mpa working pressure
Specifications of flat-plate (mm)1500*1000*802000*1000*801500*1000*802000*1000*80
Quantity of flat-plate (pcs)1122
The flat-panel solar hot water project enables the system to operate under pressure and can be integrated with heat pumps or boilers, promoting energy conservation and environmental protection. Our company specializes in undertaking hot water projects for hotels, hospitals, factories, schools, nursing homes, and other areas. We offer a range of solar energy products and hot water solutions, including heat pipe collectors, flat plate collectors, and vacuum pipe collectors. We provide a comprehensive set of solar energy products, comprising heat pumps, water tanks, circulating pumps, pipelines, and accessories for complete export. Assembly can be done based on the provided drawings, and our company offers remote guidance for installation and debugging services. Under special circumstances, our technical personnel can be sent abroad to provide guidance.

Internal Structure

China Manufacturer Thermal Black Chrome Solar Absorbing Flat Plate Panel Solar Water HeaterChina Manufacturer Thermal Black Chrome Solar Absorbing Flat Plate Panel Solar Water HeaterFeatures

1. The use of black chrome or blue titanium coating as the high-efficiency solar absorptive material, along with all-copper heat pipes, ensures rapid heat conduction and a long lifespan.

2. Dual-layer resin collector cover, fully automated laser welding of the entire panel, reduces damage to the absorptive coating and flow tubes, specially designed for insulation in the Northeast region.

3. Superconductive circulating medium with a unique formula, featuring a low boiling point, swift circulation, and normal operation at temperatures as low as minus 30 degrees Celsius, ensuring year-round reliability.

4. The support structure is capable of withstanding up to 300 kilograms, designed to withstand wind forces of up to 11 levels.

5. The product complies with both domestic and international testing standards.


The System Engineering Advantages of Flat Panel Solar Energy

1. Large heat absorption area, rapid heat absorption,
2. Suitable for water or alternative mediums, adaptable to various regions,
3. Simple, fast, convenient, and aesthetically pleasing installation,
4. Compatible and complementary with other energy sources for energy conservation,
5. Convenient maintenance for safe usage in projects.


Other Water Heating System Recommended For You

China Manufacturer Thermal Black Chrome Solar Absorbing Flat Plate Panel Solar Water Heater
The air-source heat pump module of the YIJIAREN water heating unit is under pressure and consists mainly of three parts: the main unit and system accessories (integrated), heating water tanks, and thermal storage tanks. The system utilizes a compressor to transfer heat from the air to the water, maintaining a continuous cycle of the refrigerant.

This system uses direct-heating, pressure-bearing heat pump technology for efficient heat exchange. Its modular design minimizes losses, ensuring a stable water supply with constant temperature and pressure. The modular assembly offers installation flexibility. It serves multiple applications, providing hot water, spa, and pool temperature control. Supported by various energy sources, its high integration enhances stability and reliability.
Model: YJR-CDRGRB
The system that combines superconducting heat pipe solar collectors with air source heat pumps hot water system is a highly innovative and efficient approach to energy utilization.
This system features high efficiency and environmental friendliness, capable of providing a stable hot water supply in various climatic conditions. By utilizing superconductive heat pipe technology and air source heat pump technology, it achieves lower operational costs and reduces reliance on conventional energy sources, resulting in higher energy efficiency.

This system is suitable for cold regions. The superconducting heat pipe does not carry water and is resistant to freezing. With the assistance of an air-source heat pump, it can provide hot water for 365 days.
China Manufacturer Thermal Black Chrome Solar Absorbing Flat Plate Panel Solar Water Heater
China Manufacturer Thermal Black Chrome Solar Absorbing Flat Plate Panel Solar Water Heater
Model: YJR-PBRB
The system that combines Flat-plate solar collectors with air source heat pumps hot water system is a highly innovative and efficient approach to energy utilization.
This system features high efficiency and environmental friendliness, capable of providing a stable hot water supply in various climatic conditions. By utilizing superconductive heat pipe technology and air source heat pump technology, it achieves lower operational costs and reduces reliance on conventional energy sources, resulting in higher energy efficiency.

This system is simple to install and operate under pressure, with a large heat absorption area, minimal heat loss, and high heat output. With the assistance of an air-source heat pump, it can provide hot water for 365 days.

The more comprehensive your information is, the more accurately we can customize a hot water engineering solution that caters to your specific requirements.

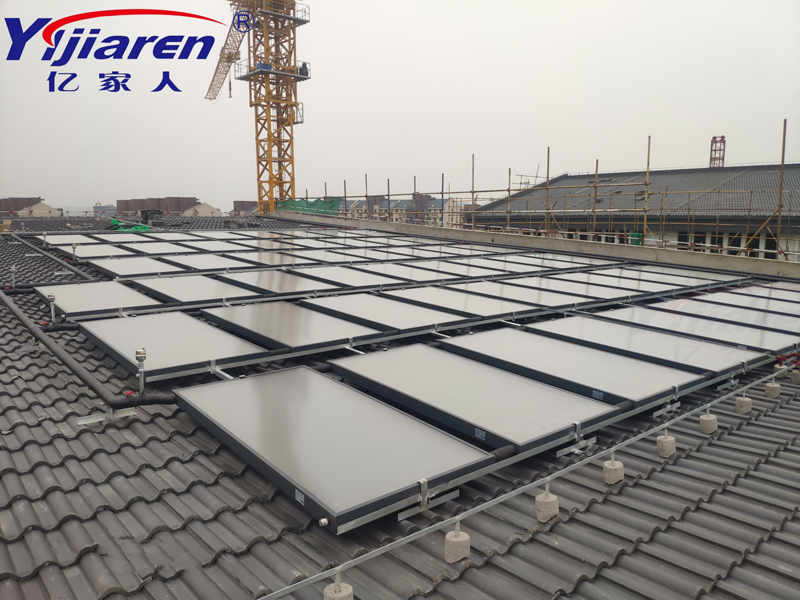

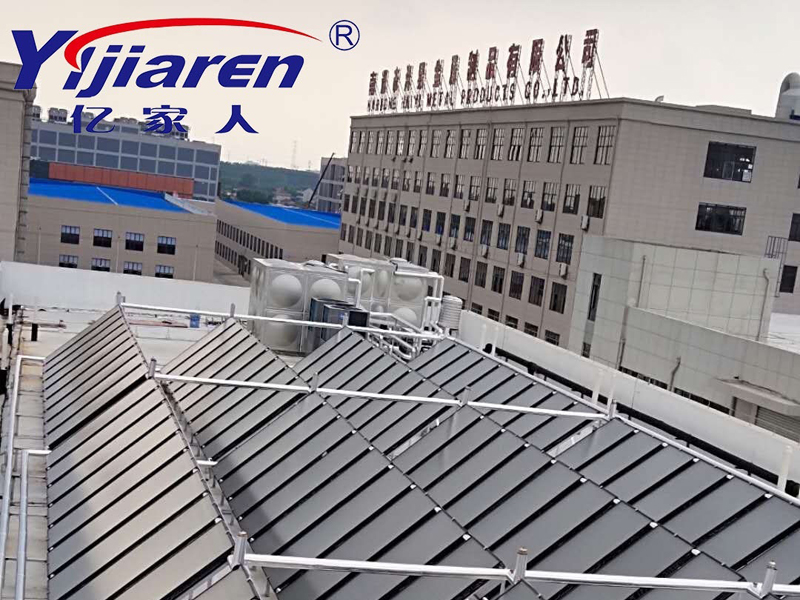

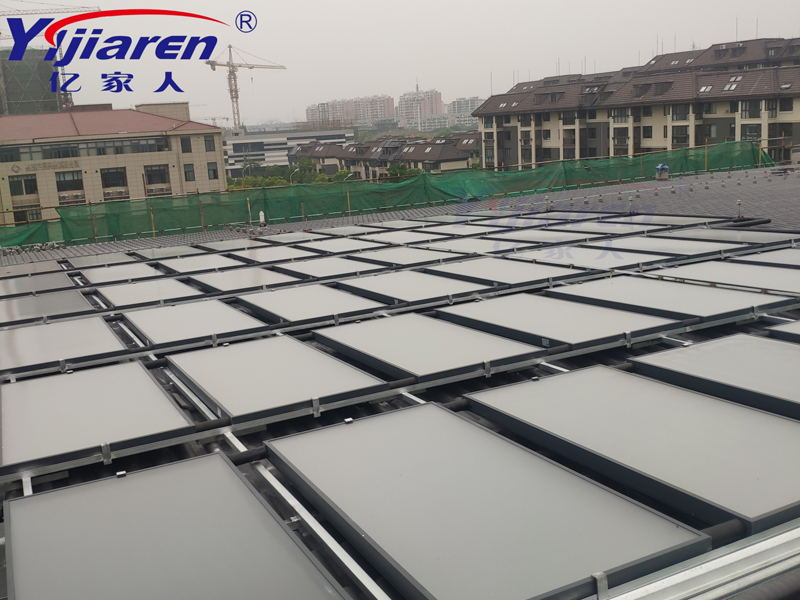

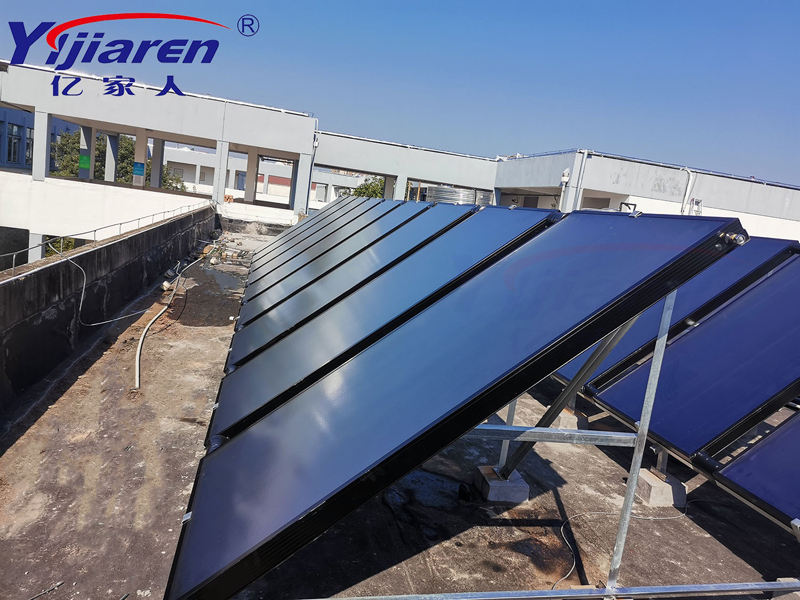

Application

About Us



Jiangsu Obuy New Energy Development Co., Ltd. (brand name "Yijiaren") is an environmentally friendly industrialized enterprise engaged in the research, production, and sales of new energy products such as heat pumps and solar energy. The company primarily manufactures air-source heat pumps and solar energy products, undertaking projects involving solar hot water, air-source hot water, commercial HVAC, fresh air systems, drying engineering, and more. These products find extensive applications in enterprises, hotels, hospitals, schools, nursing homes, fitness clubs, industrial units, agricultural drying, and other fields.

30% of the company's products are exported, with 60% allocated for domestic projects and 10% for domestic distribution. Our products are sold in 75 countries and regions worldwide.

 Our company focus on integrating hot water, floor heating, air conditioning, and fresh air systems, aspiring to establish itself as an integrated service provider in the new energy and construction sector, committed to investment economy, energy efficiency, and satisfactory service within the industry.

Since its establishment, the company has obtained ISO9001: Quality Management System Certification and ISO14001:2004 Environmental Management System Certification. We have gathered renowned scholars within the industry and, relying on our robust product design research, marketing and sales capabilities, technical expertise, and excellent service, have earned acclaim.

In furthering the advancement and safety of engineering systems and ensuring a more user-friendly, intelligent design, we pay attention to detail, diligence, dedication, and enthusiasm in opening new chapters. We aim to provide a taste of life that is more energy-efficient, environmentally friendly, intelligent, and comfortable.

We employ optimal solutions and business models to achieve your pursuit of low-carbon environmental values, constructing energy-saving, healthy, and harmonious homes.

Cooperative Clients

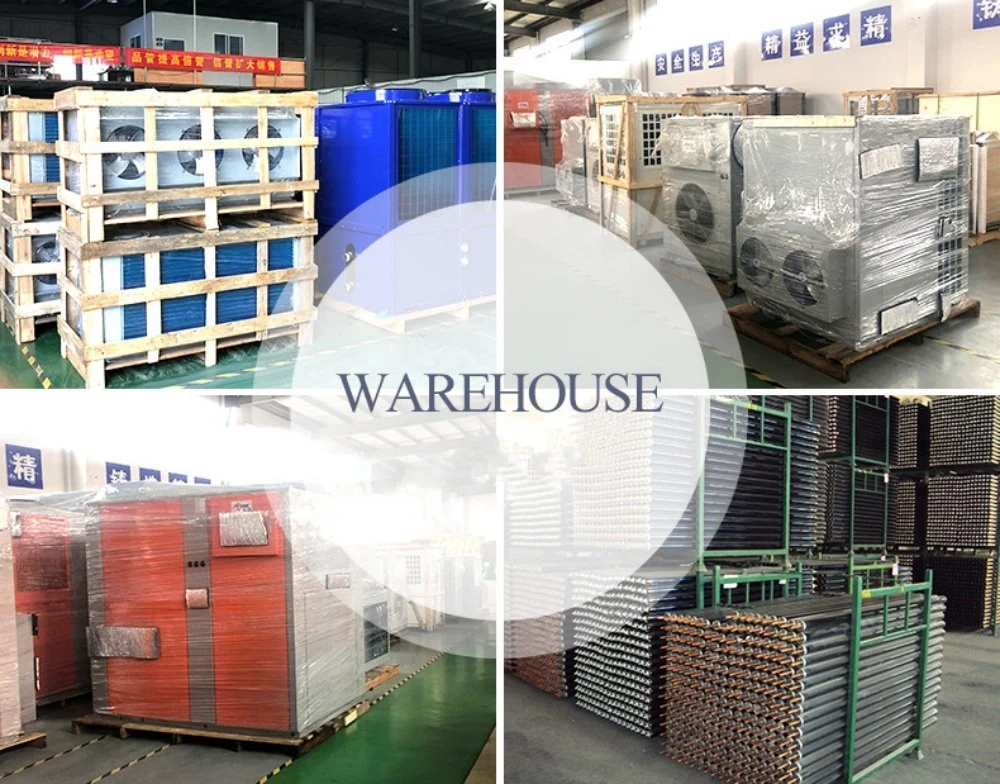

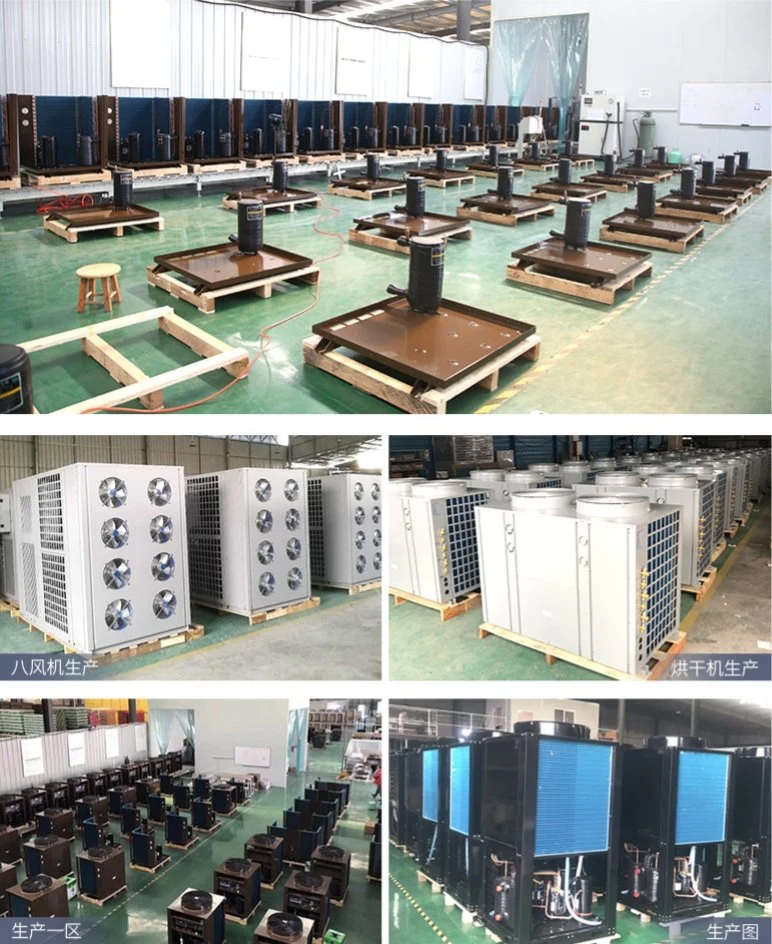

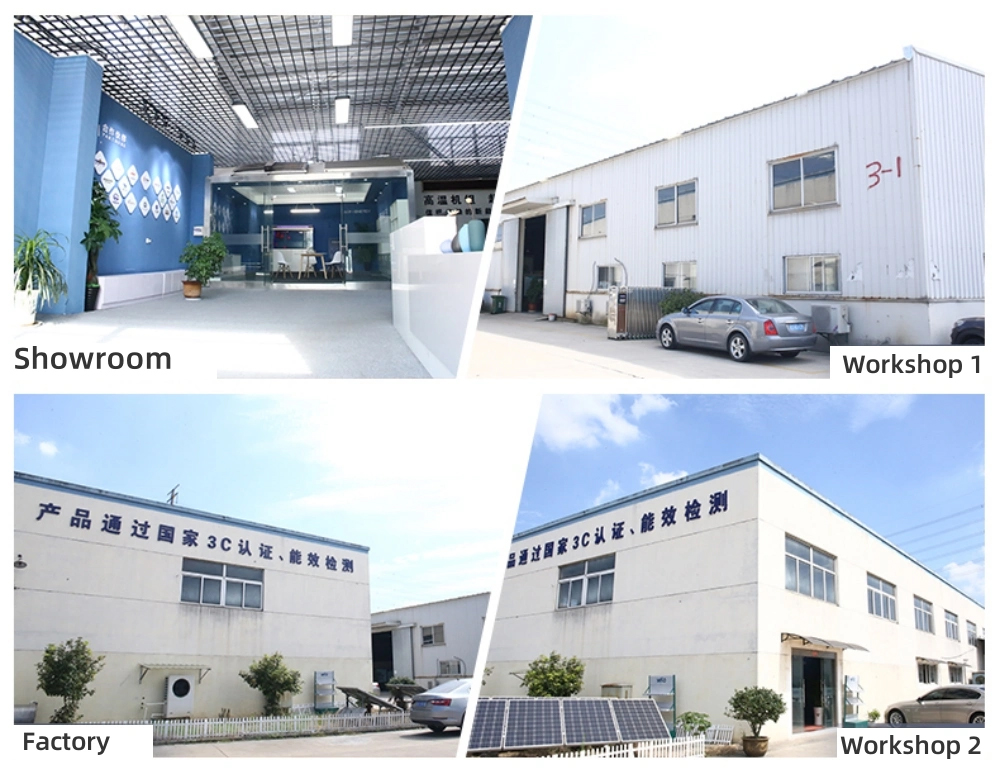

Our Factory






Certificates


Our Service

1. Our well-trained and experienced team offers exceptional patience and service.

2. Sample can be offered, with sample charge and courier fee by buyer's side.

3. We have full stock, and can deliver within short time. Many styles for you to choose.

4. OEM and ODM order are accepted, any kind of logo printing or design are available.

5. We highly value your feedback upon receiving the goods and are committed to resolving any issues promptly.

6. We ensure the confidentiality of your sales area, design concepts, and all private information.

7. We have rich experience of design, manufacture and sell Solar Water Heater and heat Pump, we cherish every order from our honor.

8. You're warmly invited to visit our factory at your convenience.


Packaging&Shipping
