High-Efficiency Heat Exchanger High Temperature Water Heating Heat Pump
Description:1. A brand new heating method: The electroplating high-temperature heat pump absorbs heat from the air for heating. Facts have proved that it is low-carbon, green, non-polluting, and the energy-saving effect is about 60% more efficient than the traditional electric heating method!

Product Description

Rated Heating Capacitykw21.230.941.3
Rated Input Powerkw8.411.816.1
Rated CurrentA15.822.230.3
Maximum Input Powerkw11.215.721.5
Rated Water Outlet TemperatureºC909090
Maximum Water Outlet TemperatureºC999999
Power Supply Specifications
Environmental Temperature RangeºC0-430-430-43
Noise LeveldB(A)≤60≤60≤62
Device Weightkg350410510
Device Dimensions(L*W*H)   mm1500*750*10701500*750*10701500*800*1600

1. A brand new heating method: The electroplating high-temperature heat pump absorbs heat from the air for heating. Facts have proved that it is low-carbon, green, non-polluting, and the energy-saving effect is about 60% more efficient than the traditional electric heating method!
2. Intelligent control or temperature zone control makes control convenient and energy-saving!
3. The high-temperature electroplating heat pump is energy-efficient for heating and provides free cold water or air conditioning for production refrigeration or for improving the workshop working environment.
4. The system has a high degree of automation, saving the cost of dedicated personnel on duty;
5. The installation is flexible, suitable for new installations and energy-saving renovations of various types of factories;
6. A variety of system solutions change as needed: According to different tank sizes and hot water demands in different industries, it provides 70-95 degree high-temperature hot water system solutions for electroplating factories, oxidation factories, and circuit board factories.

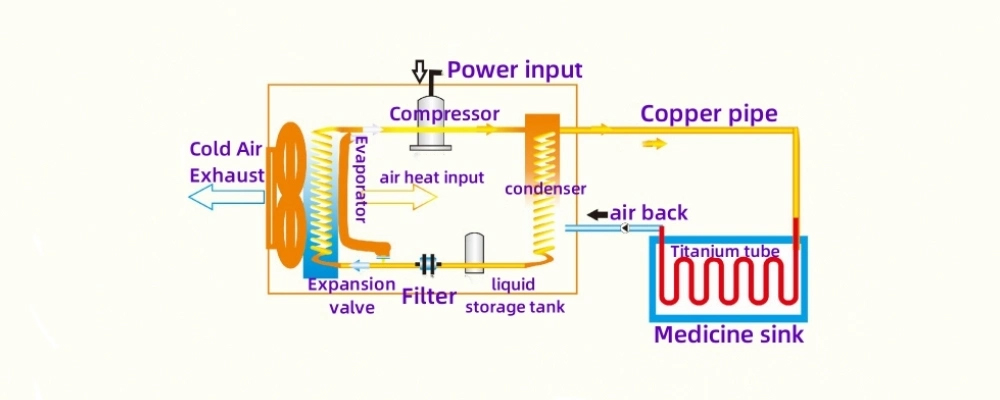

    Working principle
    The Air Source Electroplating High-Temperature Heat Pump uses electrical energy to drive the compressor for work, and uses refrigerant as the heat absorber to absorb heat from the air to produce hot water. The high-temperature heat pump for air energy electroplating generates physical phase changes (gas-liquid-gas) through the working substance, and continuously absorbs and releases heat through this repeated cycle phase change. Since it absorbs a large amount of heat from the air, it continuously releases heat to the hot water through the heat exchanger. This repeated cycle raises the temperature of the medicament in the plating bath. The thermal process of electric heat energy conversion is highly efficient.
    Product configuration
1. Based on the principle of Carnot cycle, it is driven by electricity, uses refrigerant as the heat absorption body, and absorbs heat from the air to produce hot water. It uses a big brand compressor and introduces the latest fifth-generation double helix shell and tube heat exchanger from the United States, which effectively absorbs heat in the environment. Water and electricity are separated, making the process green and energy-saving.
2. It is applicable to processes requiring a rise in temperature, such as hot water washing, oxidation, coloring, medium and high-temperature hole sealing, acid etching tanks, alkali etching tanks, etc.
3. The selection of working material: In order to ensure that the high-temperature heat pump equipment operates under a stable allowable working pressure, a special refrigerant is used as the working material. This provides a high heat exchange efficiency and isn't polluting to the environment. It also causes no harm to the ozone layer. (The high pressure of the KF-01 refrigerant does not exceed 2.0MPa at a condensation temperature of 90 degrees, ensuring the safety of the high-temperature heat pump system and equipment).
4. Optimization of fluorination system control: This ensures the long-term stable operation and lifespan of the whole unit. It also adjusts the operating status of the high-temperature heat pump equipment according to the environment temperature and evaporation temperature to achieve reliable energy saving of the unit.

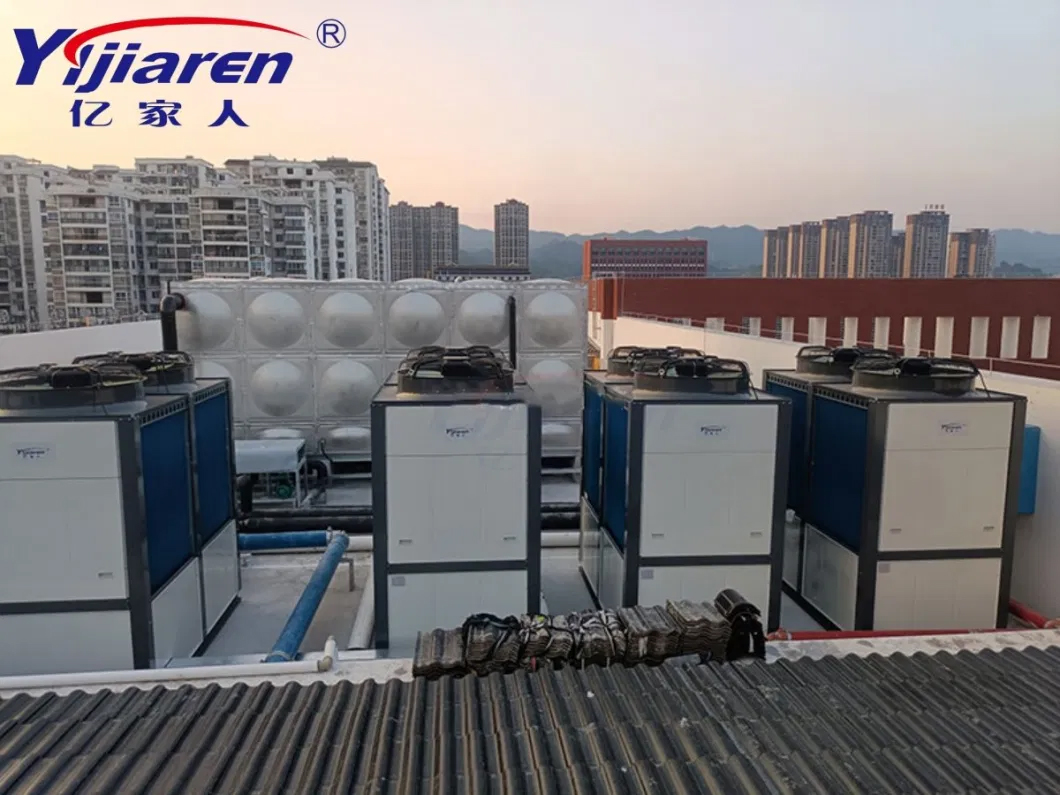

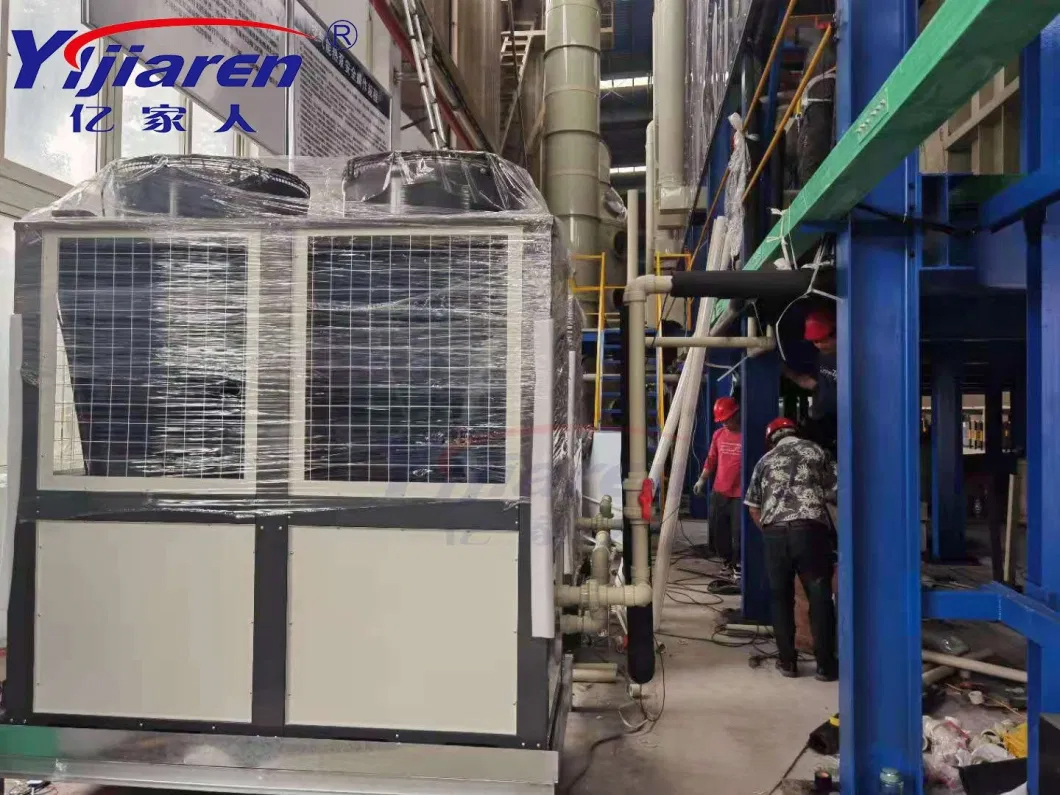

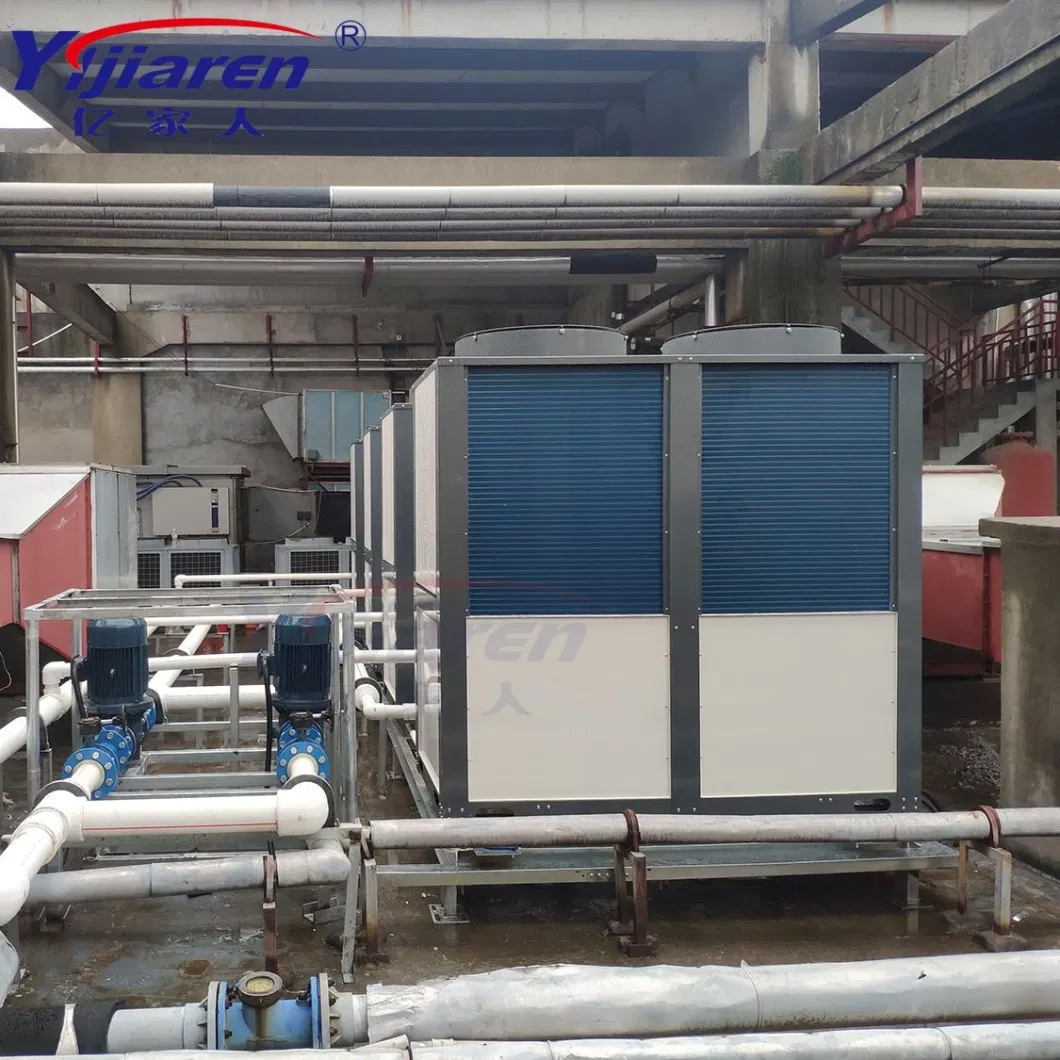

    Previous Engineerings

2.jpg    3.jpg    4.jpg

 About Us


Jiangsu Obuy New Energy Development Co., Ltd. (brand name "Yijiaren") is an environmentally friendly  industrialized enterprise engaged in the research, production, and sales  of new energy products such as heat pumps and solar energy. The company  primarily manufactures air-source heat pumps and solar energy products,  undertaking projects involving solar hot water, air-source hot water,  commercial HVAC, fresh air systems, drying engineering, and more. These  products find extensive applications in enterprises, hotels, hospitals,  schools, nursing homes, fitness clubs, industrial units, agricultural  drying, and other fields.

30%  of the company's products are exported, with 60% allocated for domestic  projects and 10% for domestic distribution. Our products are sold in 75  countries and regions worldwide.

 Our  company focus on integrating hot water, floor heating, air  conditioning, and fresh air systems, aspiring to establish itself as an  integrated service provider in the new energy and construction sector,  committed to investment economy, energy efficiency, and satisfactory  service within the industry.

Since  its establishment, the company has obtained ISO9001: Quality Management  System Certification and ISO14001:2004 Environmental Management System  Certification. We have gathered renowned scholars within the industry  and, relying on our robust product design research, marketing and sales  capabilities, technical expertise, and excellent service, have earned  acclaim.

In  furthering the advancement and safety of engineering systems and  ensuring a more user-friendly, intelligent design, we pay attention to  detail, diligence, dedication, and enthusiasm in opening new chapters.  We aim to provide a taste of life that is more energy-efficient,  environmentally friendly, intelligent, and comfortable.

We  employ optimal solutions and business models to achieve your pursuit of  low-carbon environmental values, constructing energy-saving, healthy,  and harmonious homes.
 Cooperative Clients

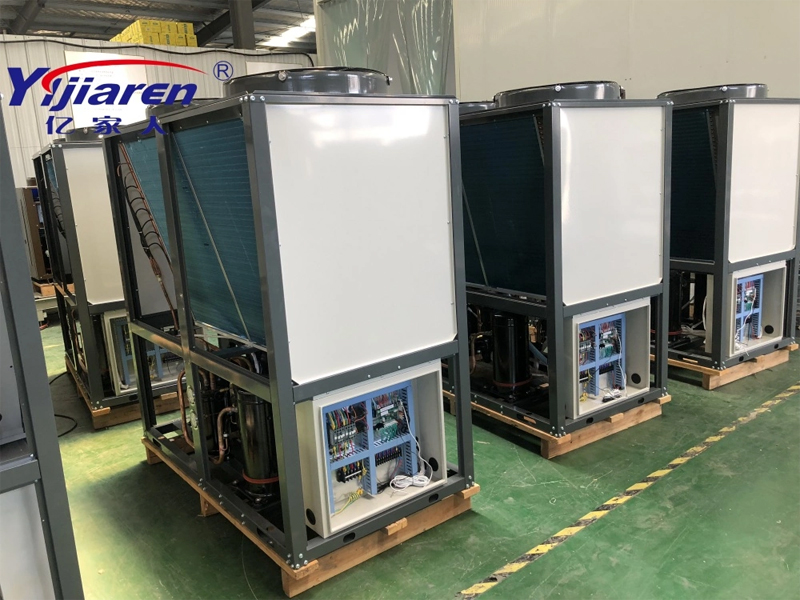

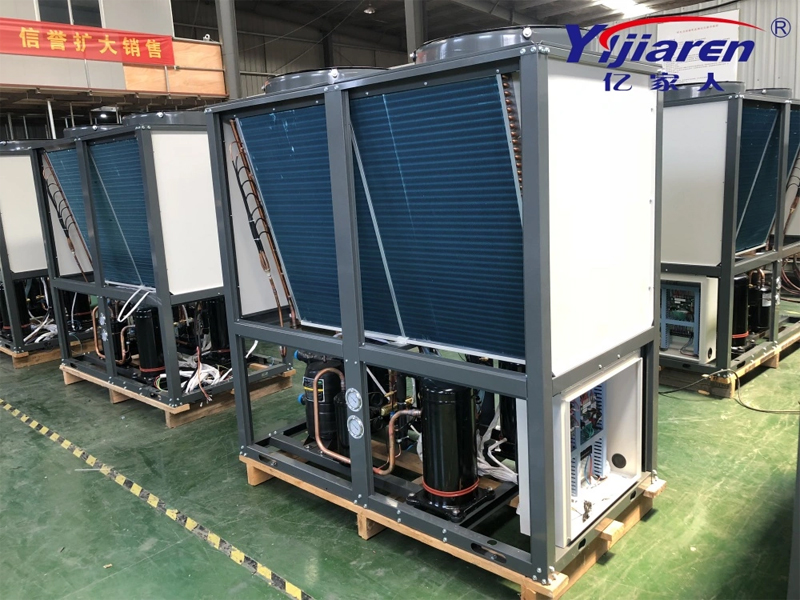

 Our Factory






Our Service
 1. Our well-trained and experienced team offers exceptional patience and service.
 2. Sample can be offered, with sample charge and courier fee by buyer's side.
 3. We have full stock, and can deliver within short time. Many styles for you to choose.
 4. OEM and ODM order are accepted, any kind of logo printing or design are available.
 5. We highly value your feedback upon receiving the goods and are committed to resolving any issues promptly.
 6. We ensure the confidentiality of your sales area, design concepts, and all private information.
 7.  We have rich experience of design, manufacture and sell Solar Water  Heater and heat Pump, we cherish every order from our honor.
 8. You're warmly invited to visit our factory at your convenience.
